Automatic Shared Parameter Builder

This practical guide teaches you how to create shared parameters using Dynamo and Revit. While this is a well-established topic with many available plugins and scripts, the main challenge lies in properly configuring the Spec Types and Group Types, since these are not simple text strings but require specific data types that Revit can understand.

Understanding Parameter Types

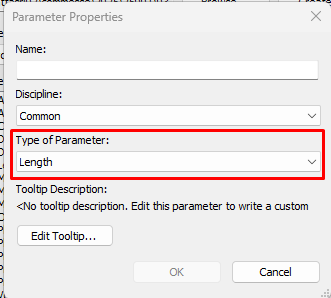

Spec Type (Type of Parameter)

The Spec Type defines what kind of data the parameter will store - whether it's text, numbers, measurements, electrical values, etc.

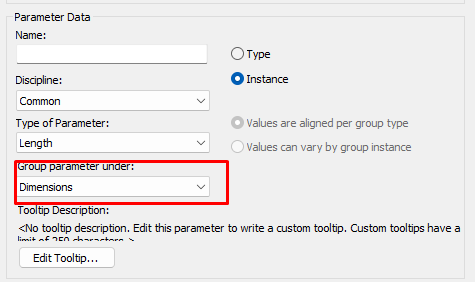

Group Type

The Group Type determines which section the parameter will appear in within Revit's Properties panel - such as Dimensions, Identity Data, Electrical, Mechanical, etc.

The Dynamo Approach

Creating a shared parameter with Dynamo is straightforward - you just need to find the right node. Here's an overview of the parameters we need to consider:

Script Workflow (Left to Right)

This workflow breaks down the process into 5 clear steps, each handling a specific part of the parameter creation process:

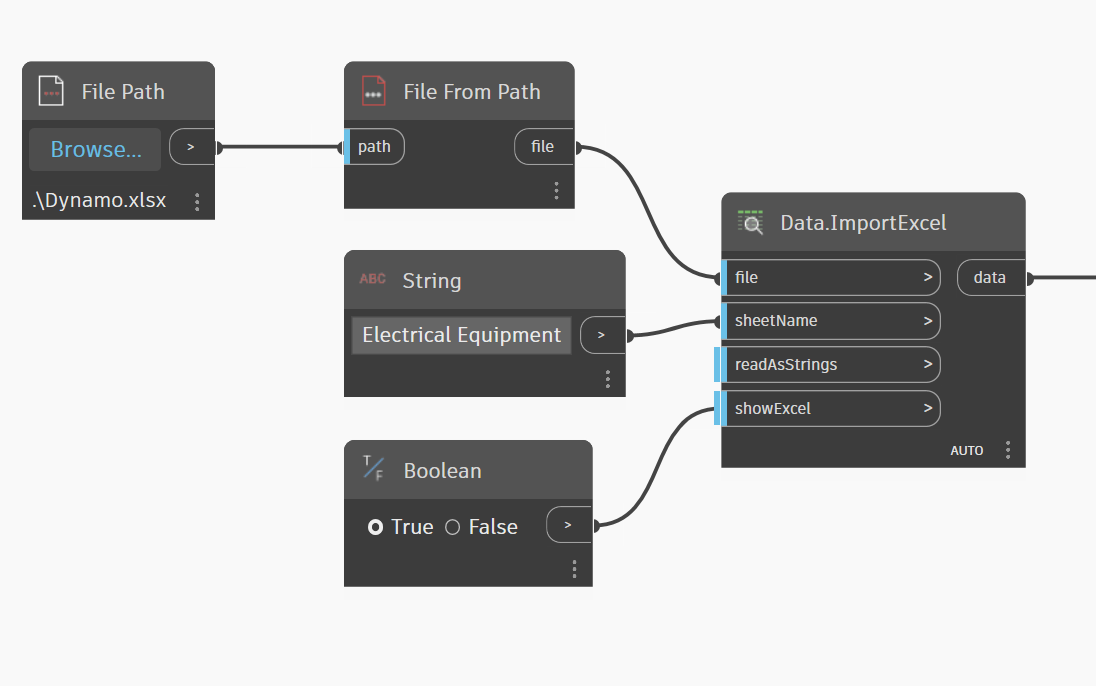

1️⃣ Data Input (File Path)

• What it does: Locates your Excel file containing parameter definitions
• For you: Simply paste the complete file path to your Excel file
• Example: C:\Users\YourName\Desktop\MyParameters.xlsx
• Important: Make sure the Excel file is closed before running the script

2️⃣ Excel Reading (Data.ImportExcel)

• What it does: Reads all rows and columns from your Excel spreadsheet
• Important: All data comes out as plain text (strings)
• Why this matters: Revit needs specific object types, not just text strings
• Result: Raw data that needs to be converted to Revit-compatible formats

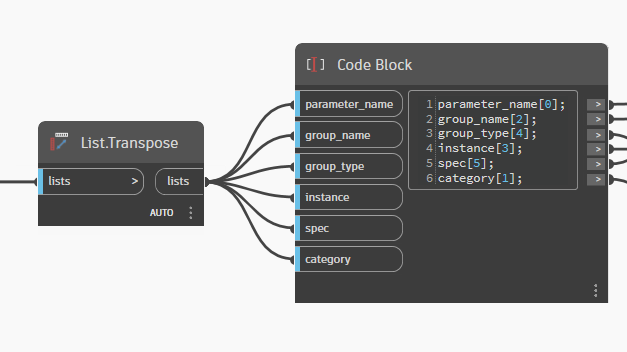

3️⃣ Data Conversion (List.Deconstruct + List.Transpose)

• What it does: Separates each Excel column into individual lists for processing
• For you: No configuration needed - this works automatically
• Result: 6 separate lists (one for each column: name, category, group, instance/type, grouptype, spectype)
• Why needed: Dynamo processes lists more efficiently than tables

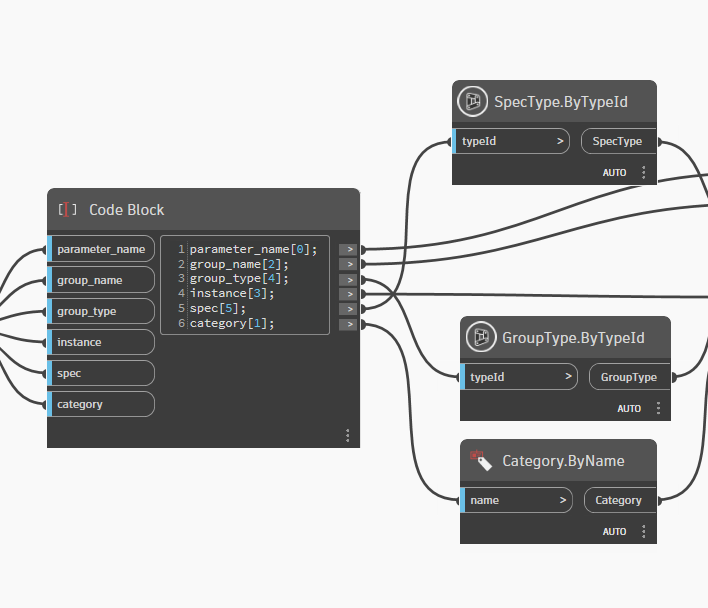

4️⃣ Forge Conversion (TypeId Nodes)

• What it does: Converts Excel text strings into proper Revit object types
• SpecType.ByTypeId: Converts spec type strings (like "autodesk.spec:spec.string-2.0.0") into SpecTypeId objects
• GroupType.ByTypeId: Converts group type strings into GroupTypeId objects
• Category.ByName: Converts category names (like "Walls") into Category objects

Why Do We Need Forge Conversion?

Excel stores everything as text, but Revit's API requires specific object types. For example:

• Excel stores: "autodesk.spec:spec.string-2.0.0" (just text)
• Revit needs: A proper SpecTypeId object

The Forge nodes do this "translation" automatically, converting text strings into the proper Revit API objects!

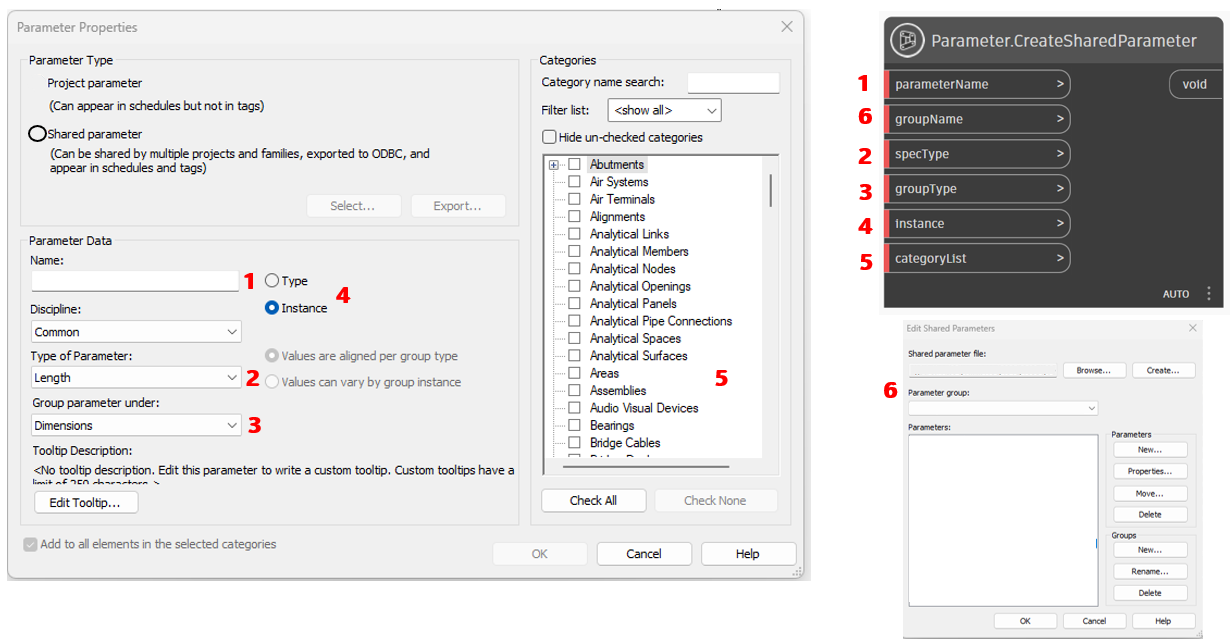

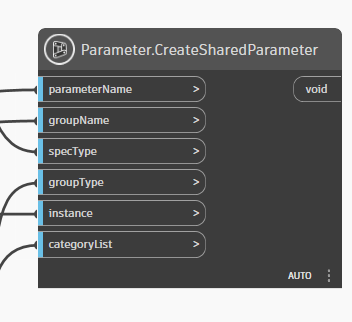

5️⃣ Parameter Creation (Parameter.CreateSharedParameter)

• What it does: Finally creates the actual Shared Parameters in your Revit project
• Receives: All the converted data from the previous steps (proper Revit objects, not text)
• Result: Parameters appear in your Revit project and Properties panel
• Success indicator: Parameters will be visible in the Revit interface immediately

Key Nodes Explained

Understanding each node's role will help you troubleshoot and customize the workflow:

Node	Function	Why It's Critical
Data.ImportExcel	Reads Excel file data	Entry point - all your parameter definitions start here
List.Deconstruct	Separates columns into individual lists	Data organization - prepares data for parallel processing
List.Transpose	Reorganizes list structure	Data alignment - ensures proper data flow to conversion nodes
SpecType.ByTypeId	Converts spec type text to Revit objects	Critical conversion - wrong spec = parameter won't work
GroupType.ByTypeId	Converts group text to Revit objects	UI placement - determines where parameter appears in Properties
Category.ByName	Converts category names to Revit objects	Element targeting - defines which Revit elements get the parameter
Parameter.CreateSharedParameter	Creates the actual parameters	Final execution - the moment parameters are born in Revit

---

① Quick Start Guide

Follow these steps to create your first shared parameters:

1. Prepare your data: Copy the Blank Template (section ③) into a new Excel file
2. Fill parameter details: Add your parameter information row by row. Use the Forge ID Reference Guide (section ⑤) to find valid groupType and specType values
3. Save and locate: Save your Excel file and copy its complete file path
4. Configure Dynamo: Paste the file path into the File Path node in the Dynamo script
5. Execute: Press Run in Dynamo - your Shared Parameters will immediately appear in Revit

Pro tip: Start with just 1-2 parameters to test the workflow before creating larger batches.

---

② Column Definitions

Your Excel file must have exactly these 6 columns in this exact order:

Column	Purpose	Examples	Notes
parameter_Name	The exact name that will appear in Revit's Properties panel	ELEC_PANEL_RATING, STRUCT_BEAM_CAPACITY	No spaces in middle recommended - use underscores
category	Which Revit elements will get this parameter	Walls, Doors, Electrical Equipment	Multiple categories: separate with ; like Walls;Doors;Windows
groupName	Custom folder name in the Properties palette	Electrical Analysis, Custom Dimensions	Creates new sections in Properties panel
instance/Type	Parameter applies to individual elements or element types	TRUE → Instance parameter FALSE → Type parameter	Instance: varies per element Type: shared across all elements of same type
grouptype	Predefined Revit property section	autodesk.parameter.group:electrical-1.0.0	Must be exact match from Forge list - controls where parameter appears
spectype	Data type and units the parameter will store	autodesk.spec:spec.string-2.0.0 (text) autodesk.spec.aec:length-2.0.0 (length)	Must be exact match from Forge list - determines what data types are allowed

---

③ Blank Template - Copy to Excel

Copy this header row into your Excel file exactly as shown (tab-separated):

parameter_Name	category	groupName	instance/Type	grouptype	spectype

Important: Make sure to use Tab characters between columns, not spaces.

---

④ Complete Working Example

Here's a ready-to-use example for elevator equipment parameters. Copy this into Excel to test the workflow:

parameter_Name	category	groupName	instance/Type	grouptype	spectype
SRE_ELEVATOR_TYPE	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec:spec.string-2.0.0
SRE_ELEVATOR_DRIVE_TYPE	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec:spec.string-2.0.0
SRE_ELEVATOR_STOPS	Specialty Equipment	Specialty Equipment_SRE	TRUE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec:number-2.0.0
SRE_ELEVATOR_DOORS	Specialty Equipment	Specialty Equipment_SRE	TRUE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec:number-2.0.0
SRE_ELEVATOR_LOAD	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec:number-2.0.0

What this creates:

• 5 parameters for Specialty Equipment category
• Custom group called "Specialty Equipment_SRE" in Properties panel
• Mix of text (TYPE, DRIVE_TYPE) and numeric (STOPS, DOORS, LOAD) parameters
• Some instance-level (STOPS, DOORS) and some type-level (TYPE, DRIVE_TYPE, LOAD) parameters

---

⑤ Complete Forge ID Reference Guide

This section provides all the valid SpecType and GroupType identifiers you need. Always copy these exactly as shown - they're case-sensitive and must match perfectly.

📋 Quick Reference Table (SpecType + GroupType)

SpecType	GroupType	Description
autodesk.spec.aec.electrical:apparentPower-2.0.0	autodesk.parameter.group:electrical-1.0.0	Electrical apparent power
autodesk.spec.aec.electrical:current-2.0.0	autodesk.parameter.group:electrical-1.0.0	Electrical current
autodesk.spec.aec.electrical:power-2.0.0	autodesk.parameter.group:electrical-1.0.0	Electrical power
autodesk.spec.aec.hvac:airFlow-2.0.0	autodesk.parameter.group:mechanical-1.0.0	HVAC air flow
autodesk.spec.aec.hvac:temperature-2.0.0	autodesk.parameter.group:mechanical-1.0.0	Temperature
autodesk.spec.aec.piping:flow-2.0.0	autodesk.parameter.group:mechanical-1.0.0	Piping flow
autodesk.spec.aec.structural:force-2.0.0	autodesk.parameter.group:identityData-1.0.0	Structural force
autodesk.spec.aec:area-2.0.0	autodesk.parameter.group:dimensions-1.0.0	Area measurement
autodesk.spec.aec:length-2.0.0	autodesk.parameter.group:dimensions-1.0.0	Length measurement
autodesk.spec.aec:volume-2.0.0	autodesk.parameter.group:dimensions-1.0.0	Volume measurement
autodesk.spec.aec:number-2.0.0	autodesk.parameter.group:identityData-1.0.0	Numeric value
autodesk.spec:spec.string-2.0.0	autodesk.parameter.group:identityData-1.0.0	Text string
autodesk.spec:spec.bool-1.0.0	autodesk.parameter.group:identityData-1.0.0	True/False

All Available GroupTypes

autodesk.parameter.group:identityData-1.0.0
autodesk.parameter.group:dimensions-1.0.0
autodesk.parameter.group:constraints-1.0.0
autodesk.parameter.group:electrical-1.0.0
autodesk.parameter.group:mechanical-1.0.0
autodesk.parameter.group:mechanicalAirflow-1.0.0
autodesk.parameter.group:ifc-1.0.0
autodesk.parameter.group:materials-1.0.0

Complete SpecType List - All Categories

autodesk.spec.aec.electrical:apparentPower-2.0.0
autodesk.spec.aec.electrical:apparentPowerDensity-1.0.0
autodesk.spec.aec.electrical:cableTraySize-2.0.0
autodesk.spec.aec.electrical:colorTemperature-2.0.0
autodesk.spec.aec.electrical:conduitSize-2.0.0
autodesk.spec.aec.electrical:costRateEnergy-2.0.0
autodesk.spec.aec.electrical:costRatePower-2.0.0
autodesk.spec.aec.electrical:current-2.0.0
autodesk.spec.aec.electrical:demandFactor-2.0.0
autodesk.spec.aec.electrical:efficacy-2.0.0
autodesk.spec.aec.electrical:frequency-2.0.0
autodesk.spec.aec.electrical:illuminance-2.0.0
autodesk.spec.aec.electrical:luminance-2.0.0
autodesk.spec.aec.electrical:luminousFlux-2.0.0
autodesk.spec.aec.electrical:luminousIntensity-2.0.0
autodesk.spec.aec.electrical:potential-2.0.0
autodesk.spec.aec.electrical:power-2.0.0
autodesk.spec.aec.electrical:powerDensity-2.0.0
autodesk.spec.aec.electrical:powerPerLength-2.0.0
autodesk.spec.aec.electrical:resistivity-2.0.0
autodesk.spec.aec.electrical:temperature-2.0.0
autodesk.spec.aec.electrical:temperatureDifference-2.0.0
autodesk.spec.aec.electrical:wattage-2.0.0
autodesk.spec.aec.electrical:wireDiameter-2.0.0
autodesk.spec.aec.electrical:loadClassification-1.0.0
autodesk.spec.aec.energy:energy-2.0.0
autodesk.spec.aec.energy:heatCapacityPerArea-2.0.0
autodesk.spec.aec.energy:heatTransferCoefficient-2.0.0
autodesk.spec.aec.energy:isothermalMoistureCapacity-2.0.0
autodesk.spec.aec.energy:permeability-2.0.0
autodesk.spec.aec.energy:specificHeat-2.0.0
autodesk.spec.aec.energy:specificHeatOfVaporization-2.0.0
autodesk.spec.aec.energy:thermalConductivity-2.0.0
autodesk.spec.aec.energy:thermalGradientCoefficientForMoistureCapacity-2.0.0
autodesk.spec.aec.energy:thermalMass-2.0.0
autodesk.spec.aec.energy:thermalResistance-2.0.0
autodesk.spec.aec.hvac:airFlow-2.0.0
autodesk.spec.aec.hvac:airFlowDensity-2.0.0
autodesk.spec.aec.hvac:airFlowDividedByCoolingLoad-2.0.0
autodesk.spec.aec.hvac:airFlowDividedByVolume-2.0.0
autodesk.spec.aec.hvac:angularSpeed-2.0.0
autodesk.spec.aec.hvac:areaDividedByCoolingLoad-2.0.0
autodesk.spec.aec.hvac:areaDividedByHeatingLoad-2.0.0
autodesk.spec.aec.hvac:coolingLoad-2.0.0
autodesk.spec.aec.hvac:coolingLoadDividedByArea-2.0.0
autodesk.spec.aec.hvac:coolingLoadDividedByVolume-2.0.0
autodesk.spec.aec.hvac:crossSection-2.0.0
autodesk.spec.aec.hvac:density-2.0.0
autodesk.spec.aec.hvac:diffusivity-2.0.0
autodesk.spec.aec.hvac:ductInsulationThickness-2.0.0
autodesk.spec.aec.hvac:ductLiningThickness-2.0.0
autodesk.spec.aec.hvac:ductSize-2.0.0
autodesk.spec.aec.hvac:factor-2.0.0
autodesk.spec.aec.hvac:flowPerPower-2.0.0
autodesk.spec.aec.hvac:friction-2.0.0
autodesk.spec.aec.hvac:heatGain-2.0.0
autodesk.spec.aec.hvac:heatingLoad-2.0.0
autodesk.spec.aec.hvac:heatingLoadDividedByArea-2.0.0
autodesk.spec.aec.hvac:heatingLoadDividedByVolume-2.0.0
autodesk.spec.aec.hvac:massPerTime-2.0.0
autodesk.spec.aec.hvac:power-2.0.0
autodesk.spec.aec.hvac:powerDensity-2.0.0
autodesk.spec.aec.hvac:powerPerFlow-2.0.0
autodesk.spec.aec.hvac:pressure-2.0.0
autodesk.spec.aec.hvac:roughness-2.0.0
autodesk.spec.aec.hvac:slope-2.0.0
autodesk.spec.aec.hvac:temperature-2.0.0
autodesk.spec.aec.hvac:temperatureDifference-2.0.0
autodesk.spec.aec.hvac:velocity-2.0.0
autodesk.spec.aec.hvac:viscosity-2.0.0
autodesk.spec.aec.infrastructure:stationing-2.0.0
autodesk.spec.aec.infrastructure:stationingInterval-2.0.0
autodesk.spec.aec.piping:density-2.0.0
autodesk.spec.aec.piping:flow-2.0.0
autodesk.spec.aec.piping:friction-2.0.0
autodesk.spec.aec.piping:mass-2.0.0
autodesk.spec.aec.piping:massPerTime-2.0.0
autodesk.spec.aec.piping:pipeDimension-2.0.0
autodesk.spec.aec.piping:pipeInsulationThickness-2.0.0
autodesk.spec.aec.piping:pipeMassPerUnitLength-2.0.0
autodesk.spec.aec.piping:pipeSize-2.0.0
autodesk.spec.aec.piping:pressure-2.0.0
autodesk.spec.aec.piping:roughness-2.0.0
autodesk.spec.aec.piping:slope-2.0.0
autodesk.spec.aec.piping:temperature-2.0.0
autodesk.spec.aec.piping:temperatureDifference-2.0.0
autodesk.spec.aec.piping:velocity-2.0.0
autodesk.spec.aec.piping:viscosity-2.0.0
autodesk.spec.aec.piping:volume-2.0.0
autodesk.spec.aec.structural:acceleration-2.0.0
autodesk.spec.aec.structural:areaForce-2.0.0
autodesk.spec.aec.structural:areaForceScale-2.0.0
autodesk.spec.aec.structural:areaSpringCoefficient-2.0.0
autodesk.spec.aec.structural:barDiameter-2.0.0
autodesk.spec.aec.structural:crackWidth-2.0.0
autodesk.spec.aec.structural:displacement-2.0.0
autodesk.spec.aec.structural:energy-2.0.0
autodesk.spec.aec.structural:force-2.0.0
autodesk.spec.aec.structural:forceScale-2.0.0
autodesk.spec.aec.structural:frequency-2.0.0
autodesk.spec.aec.structural:lineSpringCoefficient-2.0.0
autodesk.spec.aec.structural:linearForce-2.0.0
autodesk.spec.aec.structural:linearForceScale-2.0.0
autodesk.spec.aec.structural:linearMoment-2.0.0
autodesk.spec.aec.structural:linearMomentScale-2.0.0
autodesk.spec.aec.structural:mass-2.0.0
autodesk.spec.aec.structural:massPerUnitArea-2.0.0
autodesk.spec.aec.structural:massPerUnitLength-2.0.0
autodesk.spec.aec.structural:moment-2.0.0
autodesk.spec.aec.structural:momentOfInertia-2.0.0
autodesk.spec.aec.structural:momentScale-2.0.0
autodesk.spec.aec.structural:period-2.0.0
autodesk.spec.aec.structural:pointSpringCoefficient-2.0.0
autodesk.spec.aec.structural:pulsation-2.0.0
autodesk.spec.aec.structural:reinforcementArea-2.0.0
autodesk.spec.aec.structural:reinforcementAreaPerUnitLength-2.0.0
autodesk.spec.aec.structural:reinforcementCover-2.0.0
autodesk.spec.aec.structural:reinforcementLength-2.0.0
autodesk.spec.aec.structural:reinforcementSpacing-2.0.0
autodesk.spec.aec.structural:reinforcementVolume-2.0.0
autodesk.spec.aec.structural:rotation-2.0.0
autodesk.spec.aec.structural:rotationalLineSpringCoefficient-2.0.0
autodesk.spec.aec.structural:rotationalPointSpringCoefficient-2.0.0
autodesk.spec.aec.structural:sectionArea-2.0.0
autodesk.spec.aec.structural:sectionDimension-2.0.0
autodesk.spec.aec.structural:sectionModulus-2.0.0
autodesk.spec.aec.structural:sectionProperty-2.0.0
autodesk.spec.aec.structural:stress-2.0.0
autodesk.spec.aec.structural:surfaceAreaPerUnitLength-2.0.0
autodesk.spec.aec.structural:thermalExpansionCoefficient-2.0.0
autodesk.spec.aec.structural:unitWeight-2.0.0
autodesk.spec.aec.structural:velocity-2.0.0
autodesk.spec.aec.structural:warpingConstant-2.0.0
autodesk.spec.aec.structural:weight-2.0.0
autodesk.spec.aec.structural:weightPerUnitLength-2.0.0
autodesk.spec.aec:angle-2.0.0
autodesk.spec.aec:area-2.0.0
autodesk.spec.aec:costPerArea-2.0.0
autodesk.spec.aec:decimalSheetLength-2.0.0
autodesk.spec.aec:distance-2.0.0
autodesk.spec.aec:length-2.0.0
autodesk.spec.aec:massDensity-2.0.0
autodesk.spec.aec:number-2.0.0
autodesk.spec.aec:rotationAngle-2.0.0
autodesk.spec.aec:sheetLength-2.0.0
autodesk.spec.aec:siteAngle-2.0.0
autodesk.spec.aec:slope-2.0.0
autodesk.spec.aec:speed-2.0.0
autodesk.spec.aec:time-2.0.0
autodesk.spec.aec:volume-2.0.0
autodesk.spec.aec:material-1.0.0
autodesk.spec.aec:numberOfPoles-2.0.0
autodesk.spec.aec:multilineText-2.0.0
autodesk.spec.aec:fillPattern-1.0.0
autodesk.spec.measurable:currency-2.0.0
autodesk.spec:spec.int64-2.0.0
autodesk.spec:spec.string-2.0.0
autodesk.spec:spec.bool-1.0.0
autodesk.spec.string:url-2.0.0
autodesk.spec.reference:image-1.0.0

---

---

📊 Expanded Templates & Examples

Template Collection - Ready to Use

🏗️ Structural Parameters Template

parameter_Name	category	groupName	instance/Type	grouptype	spectype
STRUCT_BEAM_CAPACITY	Structural Framing	Structural Analysis	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec.structural:force-2.0.0
STRUCT_COLUMN_LOAD	Structural Columns	Structural Analysis	TRUE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec.structural:force-2.0.0
STRUCT_FOUNDATION_TYPE	Structural Foundations	Structural Analysis	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec:spec.string-2.0.0
STRUCT_REINFORCEMENT_GRADE	Structural Framing	Materials	FALSE	autodesk.parameter.group:materials-1.0.0	autodesk.spec:spec.string-2.0.0
STRUCT_MOMENT_CAPACITY	Structural Framing	Structural Analysis	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec.structural:moment-2.0.0

⚡ Electrical Parameters Template

parameter_Name	category	groupName	instance/Type	grouptype	spectype
ELEC_PANEL_RATING	Electrical Equipment	Electrical Analysis	FALSE	autodesk.parameter.group:electrical-1.0.0	autodesk.spec.aec.electrical:current-2.0.0
ELEC_CIRCUIT_BREAKER	Electrical Equipment	Electrical Analysis	TRUE	autodesk.parameter.group:electrical-1.0.0	autodesk.spec:spec.string-2.0.0
ELEC_POWER_CONSUMPTION	Electrical Equipment	Electrical Analysis	TRUE	autodesk.parameter.group:electrical-1.0.0	autodesk.spec.aec.electrical:power-2.0.0
ELEC_VOLTAGE_RATING	Electrical Equipment	Electrical Analysis	FALSE	autodesk.parameter.group:electrical-1.0.0	autodesk.spec.aec.electrical:potential-2.0.0
ELEC_CONDUIT_SIZE	Conduit Fittings	Electrical Analysis	FALSE	autodesk.parameter.group:electrical-1.0.0	autodesk.spec.aec.electrical:conduitSize-2.0.0

🌡️ HVAC Parameters Template

parameter_Name	category	groupName	instance/Type	grouptype	spectype
HVAC_AIR_FLOW_RATE	Mechanical Equipment	HVAC Analysis	TRUE	autodesk.parameter.group:mechanical-1.0.0	autodesk.spec.aec.hvac:airFlow-2.0.0
HVAC_COOLING_CAPACITY	Mechanical Equipment	HVAC Analysis	FALSE	autodesk.parameter.group:mechanical-1.0.0	autodesk.spec.aec.hvac:coolingLoad-2.0.0
HVAC_HEATING_CAPACITY	Mechanical Equipment	HVAC Analysis	FALSE	autodesk.parameter.group:mechanical-1.0.0	autodesk.spec.aec.hvac:heatingLoad-2.0.0
HVAC_DUCT_SIZE	Ducts	HVAC Analysis	FALSE	autodesk.parameter.group:mechanical-1.0.0	autodesk.spec.aec.hvac:ductSize-2.0.0
HVAC_TEMPERATURE_SETPOINT	Spaces	HVAC Analysis	TRUE	autodesk.parameter.group:mechanical-1.0.0	autodesk.spec.aec.hvac:temperature-2.0.0

🚿 Plumbing Parameters Template

parameter_Name	category	groupName	instance/Type	grouptype	spectype
PLUMB_PIPE_SIZE	Pipes	Plumbing Analysis	FALSE	autodesk.parameter.group:mechanical-1.0.0	autodesk.spec.aec.piping:pipeSize-2.0.0
PLUMB_FLOW_RATE	Plumbing Fixtures	Plumbing Analysis	TRUE	autodesk.parameter.group:mechanical-1.0.0	autodesk.spec.aec.piping:flow-2.0.0
PLUMB_PRESSURE_RATING	Pipes	Plumbing Analysis	FALSE	autodesk.parameter.group:mechanical-1.0.0	autodesk.spec.aec.piping:pressure-2.0.0
PLUMB_FIXTURE_TYPE	Plumbing Fixtures	Plumbing Analysis	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec:spec.string-2.0.0
PLUMB_WATER_TEMPERATURE	Plumbing Fixtures	Plumbing Analysis	TRUE	autodesk.parameter.group:mechanical-1.0.0	autodesk.spec.aec.piping:temperature-2.0.0

📐 General Dimensions Template

parameter_Name	category	groupName	instance/Type	grouptype	spectype
DIM_CUSTOM_LENGTH	Walls;Floors;Roofs	Custom Dimensions	TRUE	autodesk.parameter.group:dimensions-1.0.0	autodesk.spec.aec:length-2.0.0
DIM_CUSTOM_AREA	Walls;Floors;Roofs	Custom Dimensions	TRUE	autodesk.parameter.group:dimensions-1.0.0	autodesk.spec.aec:area-2.0.0
DIM_CUSTOM_VOLUME	Rooms;Spaces	Custom Dimensions	TRUE	autodesk.parameter.group:dimensions-1.0.0	autodesk.spec.aec:volume-2.0.0
DIM_CUSTOM_ANGLE	Generic Models	Custom Dimensions	TRUE	autodesk.parameter.group:dimensions-1.0.0	autodesk.spec.aec:angle-2.0.0
DIM_CUSTOM_COUNT	Generic Models	Custom Dimensions	TRUE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec:number-2.0.0

🏢 Specialty Equipment Template (Complete Example)

parameter_Name	category	groupName	instance/Type	grouptype	spectype
SRE_ELEVATOR_TYPE	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec:spec.string-2.0.0
SRE_ELEVATOR_DRIVE_TYPE	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec:spec.string-2.0.0
SRE_ELEVATOR_STOPS	Specialty Equipment	Specialty Equipment_SRE	TRUE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec:number-2.0.0
SRE_ELEVATOR_DOORS	Specialty Equipment	Specialty Equipment_SRE	TRUE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec:number-2.0.0
SRE_ELEVATOR_LOAD	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec:number-2.0.0
SRE_ELEVATOR_SPEED	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec.aec:speed-2.0.0
SRE_ELEVATOR_MANUFACTURER	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec:spec.string-2.0.0
SRE_ELEVATOR_MODEL	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec:spec.string-2.0.0
SRE_ELEVATOR_POWER_REQUIRED	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:electrical-1.0.0	autodesk.spec.aec.electrical:power-2.0.0
SRE_ELEVATOR_IS_ACCESSIBLE	Specialty Equipment	Specialty Equipment_SRE	FALSE	autodesk.parameter.group:identityData-1.0.0	autodesk.spec:spec.bool-1.0.0

🎯 Common Parameter Combinations

Parameter Type	Recommended SpecType	Recommended GroupType
Text Description	autodesk.spec:spec.string-2.0.0	autodesk.parameter.group:identityData-1.0.0
Numeric Count	autodesk.spec.aec:number-2.0.0	autodesk.parameter.group:identityData-1.0.0
Yes/No Choice	autodesk.spec:spec.bool-1.0.0	autodesk.parameter.group:identityData-1.0.0
Length/Distance	autodesk.spec.aec:length-2.0.0	autodesk.parameter.group:dimensions-1.0.0
Area	autodesk.spec.aec:area-2.0.0	autodesk.parameter.group:dimensions-1.0.0
Volume	autodesk.spec.aec:volume-2.0.0	autodesk.parameter.group:dimensions-1.0.0
Electrical Power	autodesk.spec.aec.electrical:power-2.0.0	autodesk.parameter.group:electrical-1.0.0
Temperature	autodesk.spec.aec.hvac:temperature-2.0.0	autodesk.parameter.group:mechanical-1.0.0
Structural Force	autodesk.spec.aec.structural:force-2.0.0	autodesk.parameter.group:identityData-1.0.0

---

🆘 Need Help?

Troubleshooting Resources:

• Check in-line comments: Inside the Dynamo graph for node-by-node explanations
• Forge documentation: Look up Revit API → ForgeTypeId for official references
• Test incrementally: Start with 1-2 parameters before creating large batches
• Verify Excel format: Ensure tab-separated values and exact column headers

Contact:

• Paulo Giavoni – BIM Specialist for technical assistance

---

🚀 Tips for Beginners

✅ Pre-Run Checklist

• Excel file saved and closed
• Correct file path in "File Path" node
• Data filled following template exactly
• Revit open with an active project

⚠️ Common Errors

1. "Cannot find file": Check if the path is correct
2. "Invalid SpecType": Use exactly the codes from Forge list
3. "Parameter already exists": Parameter was already created before
4. "Invalid Category": Category name must be in English

💡 Advanced Tips

Data Management:

• Multiple categories: Separate with semicolons: "Walls;Doors;Windows"
• Unique naming: Use prefixes to avoid conflicts: "SRE_", "MEP_", "STRUCT_"
• Test incrementally: Start with 1-2 parameters before creating large batches

Best Practices:

• Always backup: Save your Revit project before running the script
• Close Excel: Make sure your Excel file is closed when running Dynamo
• Validate data: Double-check SpecType and GroupType values against the reference lists
• Document changes: Keep a record of parameters created for future reference

---

Version 1.1 • Last updated: June 12, 2025
